Direct Drive CNC Rotary Table

IP Rating : IP65

Axis Orientation : Horizontal

Table diameter : 170

Brand Name : Juzhuo

Model : DAR-170

video outgoing-inspection : Provided

Place of Origin : Guangdong, China

Products name : 4th axis rotary table

center height : 135mm

Table loading capacity : 50kg

MOQ : 1

weight (kg) : 80

warranty : 3 Years

Machine Type : CNC rotary table, Direct-drive 4axis rotary table

machinery test report : Provided

brake torque : 150N.M

T-slot size : 12H8

Contact Now

DD Motor Rotary Table
Direct-drive Torque Motor 4th Axis Rotary Table DD Motor Rotary Table
Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48

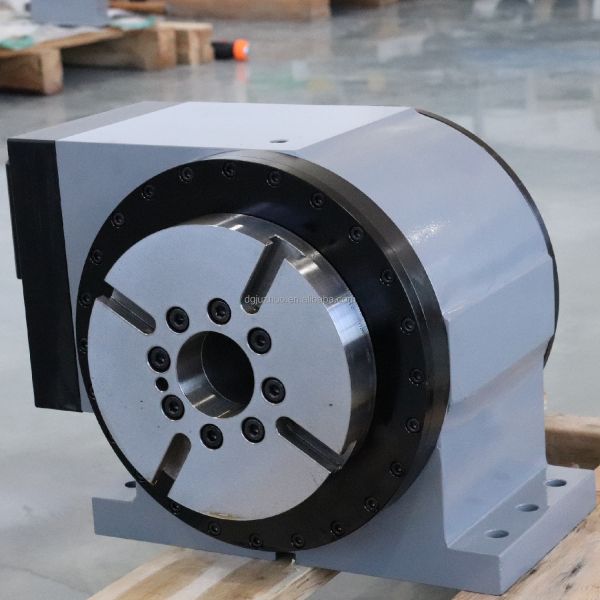

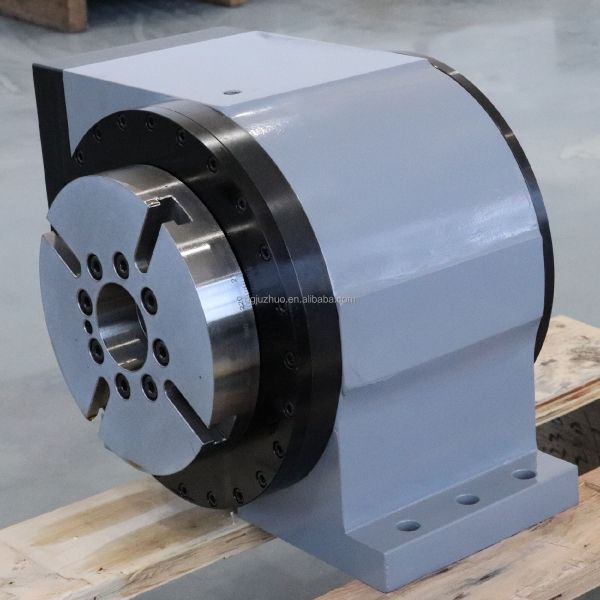

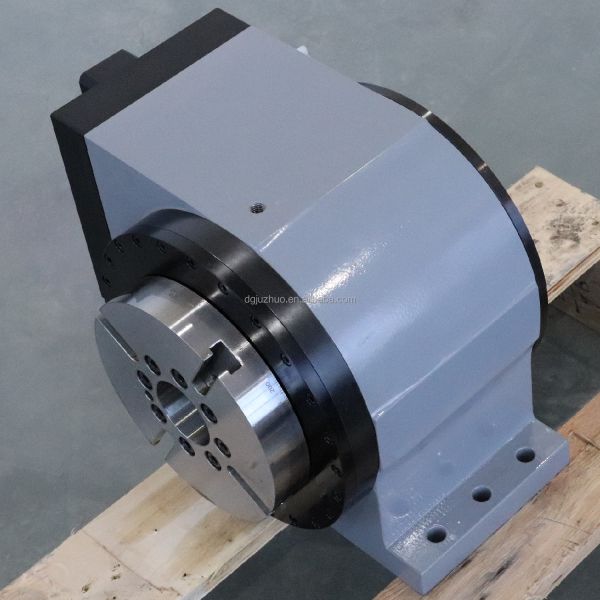

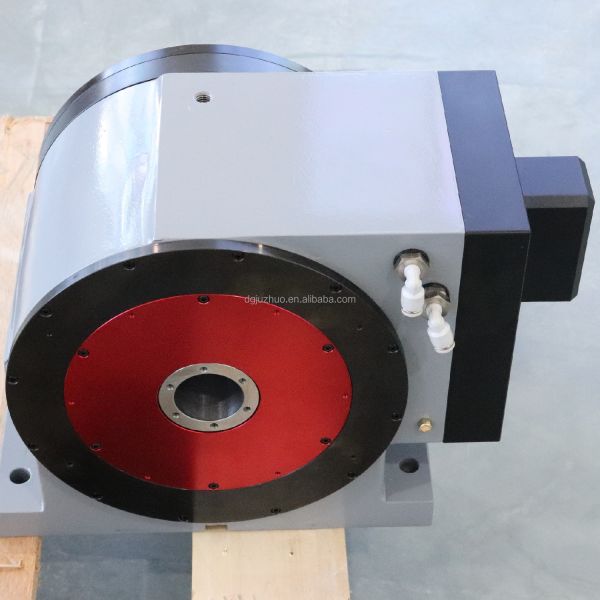

Product Images
Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table
