4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320

Name: 4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D320
Brand: Juzhuo
Price: 1 USD

China 4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320 wholesale

Brand Name : Juzhuo

Rotary Table Diameter : 320

weight (kg) : 100

machinery test report : Provided

Center through hole : 90H7

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine

division precision : +/-10

Structure : Worm gear

Place of Origin : Guangdong, China

MOQ : 1

Horizontal loading capacity : 350kg

vertical loading capacity : 150Kg

usage : milling or drilling machine

video outgoing-inspection : Provided

Center height(mm) : 210

warranty : 3 Years

material : steel

Contact Now

4th/5th Axis CNC Rotary Table D-320

Product Overview

The D-320 4th/5th Axis CNC Rotary Table delivers high-precision rotational positioning for advanced machining applications, supporting both 4-axis and 5-axis configurations.

Key Features

Utilizes imported precision dual-lead worm gear system for exceptional transmission accuracy
Turbine assembly manufactured from aluminum bronze alloy for superior performance and durability
Oversized turbine design (nearly matching disc dimensions) provides 30-50% better steel rigidity compared to similar products
Cross roller bearing construction enhances rotation accuracy and structural rigidity
Maintains long-term processing stability and minimizes workpiece defects

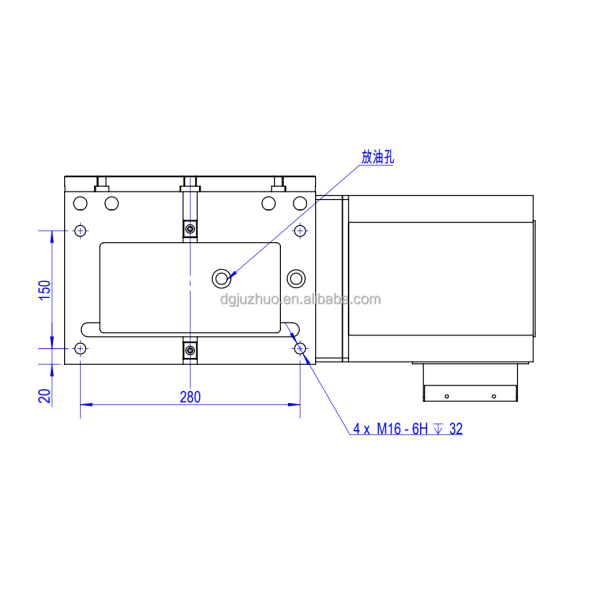

Technical Specifications

Detailed technical parameters and performance specifications:

4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320
