Bedding Article Needle Metal Detector Food Cake Processing Inspection JZD-600

sensitivity : other

user : all

MOQ : 2

control panel : Touch screen dispaly

waterproof : IP66

Model Number : JZD-600

operating frequency : Other

Place of Origin : Guangdong, China

conveyor speed : 22m/minutes(variable speed,adjustable)

belt color : white ,green

motor : (TRANSTECNO) and Japan Mistubishi

material : Stainless Steel

frequency changer : Japan Panasanic

IP Rating : Ip67

certification approval : ISO9001,HACCP,CE

type : metal detector

Search Coil Diameter : 20 cm, 18 cm, 10 cm, 15 cm, 8 cm, 12 cm, 5cm, 25 cm, 30cm, 40 cm

alarm : audible and visual alarm ,automatic stop

raw material : SUS304 stainless steel

Price : $4,200

conveyor load : 25kg(customized)

Contact Now

Bedding Article Needle Detector Machine for Cake JZD-600

Product Overview

New arrivals bedding article needle detector machine for cake JZD-600 - advanced metal detection technology for food safety applications.

Applications

This equipment is designed for detecting metal foreign bodies in various industries including food, medicine, food additives, spices, health products, and other related fields.

Key Features

Constructed entirely from SUS304 Stainless steel for anti-erosion properties and long lifespan
Multi-frequency detection with self-analysis function and high sensitivity
Colorful LCD touch screen for convenient operation
Storage capacity for approximately 100 product data sets, ideal for production lines with variable detecting products
Dual channel detection: one channel for FE detection and another for non-ferrous metals
Waterproof IP66 protection level, capable of withstanding high-pressure water cleaning
Stable long-term operation with special design suitable for harsh production environments with strong vibration and high interference
No missed alarms even when tapping the probe
Succinctly detachable framework design for easy cleaning by operators

Technical Specifications

Model	JZD-600
Inspection Window Width (mm)	400 (customized) \| 500 (customization)
Inspection Height (mm)	120 \| 150 \| 200 \| 150 \| 200 \| 250 \| 300
Detection Sensitivity - Fe (Φmm)	≥ 0.8 \| ≥ 1.0 \| ≥ 1.2 \| ≥ 1.0 \| ≥ 1.2 \| ≥ 1.5 \| ≥ 2.0
Detection Sensitivity - Non-Fe/SUS (Φmm)	≥ 1.5 \| ≥ 2.0 \| ≥ 2.5 \| ≥ 2.0 \| ≥ 2.5 \| ≥ 3.0 \| ≥ 3.5
Alarm System	Alarm to stop transfer or reject setting
Raw Material	SUS304
Standard Machine Size (mm)	1700(L) × 910(W) × 1000(H) (Based on normal size 40×12cm)
Net Weight	330kg (based on normal size)
Power Supply	110V/220V/380V/440V 50Hz/60Hz (Power: 90W)
Conveyor Speed	25-30m/min (customized)
Conveyor Height	650mm ±50mm (customized)

Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Auto-rejection equipment can be installed according to customer requirements.

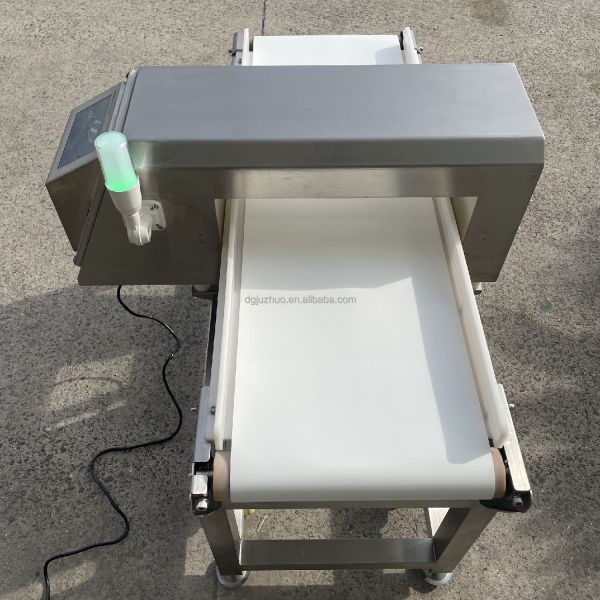

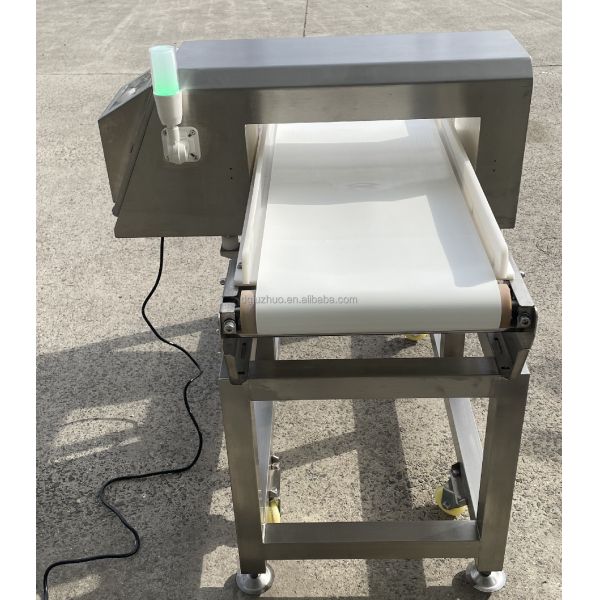

Product Images
