Pipeline Vertical Gravity Fall Metal Separator Detection Equipment JZD-60-40

the way of exlusion : automatic separation

Place of Origin : Guangdong, China

Rejection time : 0.2-2.5Second

Output : 300KG/HR

waterproof level : IP66

Input tube : 35mm

fuse : 2pcs 315ma

raw material : SUS304 stainless steel

Model Number : JZD-60-40

MOQ : 1

Detection sensitivity (:Fe SUS) : Fe:0.5mm sus:1mm

Air consumption : 0.4leter per rejection action

air compression : 2.5KG.8mmm soft tube connect

Contact Now

2025 Super Popular Pipeline Vertical Metal Separator JZD-60-40

Product Overview

Pipeline Vertical Metal Separator JZD-60-40 is designed for detecting and removing metal impurities in pharmaceutical and industrial applications.

Applications

Mainly used for detecting metal impurities in pharmaceutical products including ferrous, non-ferrous, copper, aluminum, and other metal contaminants.

Technical Parameters

Control System

Control Part: MEIDELE
Electromagnetic Valve
Air Cylinder: SMC
Air Cylinder Filter: SMC
Machine Material: Full stainless steel
Working Voltage: 220V AC (±10%), 50/60Hz
Input Current: 80/160mA
Fuse: 2 pcs 315mA
Working Environment: -10°C to 60°C
Waterproof Standard: IP65
Input Connector: Testing button, Hand separator, Reset
Output Connector: Metal detector

Machine Parameters

Air Compression: 2.5KG, 8mm soft tube connection
Air Consumption: 0.4 liter per rejection action
Rejection Time: 0.2-2.5 seconds

Sensitivity Specifications

Input Tube	Output	Detection Sensitivity (Fe/SUS)
35MM	300KG/HR	Fe: 0.5mm, SUS: 1mm

Working Principle

This metal detector consists of metal detection and rejection sections, both controlled by the control box. The system operates using a high-frequency magnetic field. When metals pass through the sensor, they influence the magnetic field, triggering a signal to the rejection device.

Important Notes

While this machine provides optimal metal separation solutions, detection may not occur in the following cases:

When detected materials have massive particles smaller than standard metal detection thresholds
When multiple metals are detected simultaneously and the rejection device is not turned off

Product Images

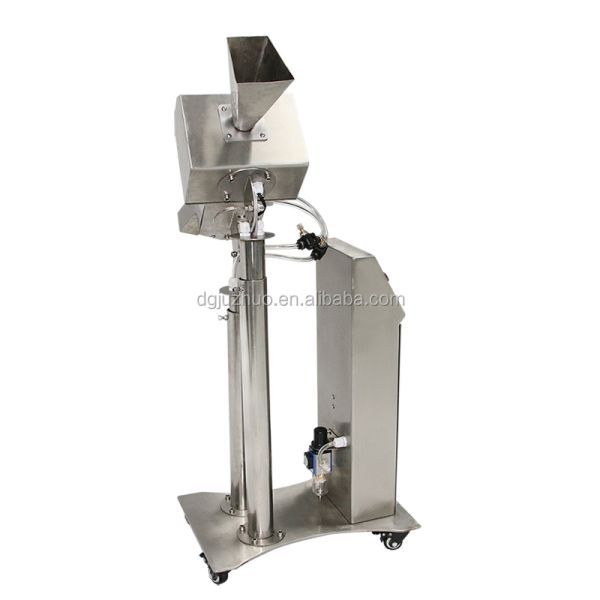

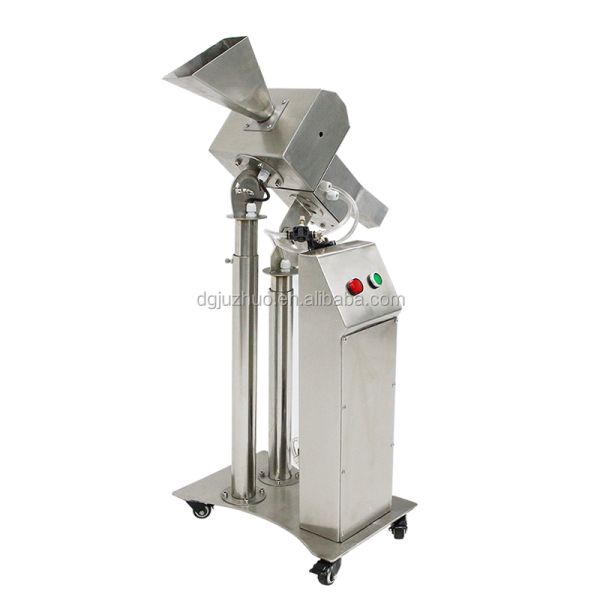

Pipeline Vertical Gravity Fall Metal Separator Detection Equipment JZD-60-40
