High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16

material : stainless 304 and 316

Model Number : JZD-P16

sensitivity : other

Record of product quantities : 100kinds of different product parameter

operating frequency : Other

Product name : Food Metal Detector

the diameter of transportation hopper : 50~150mm(customized)

control panel : LCD display

waterproof level : IP66

type : Pipeline metal detector

Place of Origin : Guangdong, China

IP Rating : Ip67

Usage : Security Inspection

the way of exlusion : sound and light alarm,air piracy exclusion automatically

user : powder,granular products

raw material : SUS304/316

Price : €3,035.16

MOQ : 1

Display : LCD Digital Display

Search Coil Diameter : 5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 25 cm, 20 cm, 30cm, 40 cm

Contact Now

High Accuracy Gravity Free Fall Metal Detector JZD-P16

2025 Popular Gravity Free Fall Metal Detector designed for precision metal detection and separation in various industrial applications.

Applications

Food industry
Chemical industry
Pharmaceutical industry
Plastic industry
Packaging industry

Function

Detects and separates all types of metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Key Features

Detection method: Free-Falling body/Gravity
Suitable material: Grain or powder
Separation method: Automatic separation
Advantages: High precision and simple installation

Technical Parameters

Operating voltage	220 VAC (+/-10%, 50/60 Hz)
Input current	80/160 mA
Ambient temperature	-10/60 degrees
Case Material	Stainless Steel
Contact parts with material	PP plastic and PTFE
Compressed air	4-8 kg, connected with 6-8 mm hose
Gas consumption	0.6 liters each separate action
Level of protection	IP 54
Separation time	0.2 - 2.5 seconds (No level adjustment)
Detection accuracy	0-10 stepless adjustable (recommended scale 9)
Detection method	Plastic granules with falling body
Material characteristics	Dry, no long-fiber, non-conductive, particles less than 8 mm

Specifications

Model Type	Internal Detection Tube Diameter	Capacity (l/h)	Detection Accuracy
80 Type	80 mm	5,000	Iron/Stainless Steel: 0.7 mm, Copper: 1.2 mm
100 Type	100 mm	10,000	Iron/Stainless Steel: 0.8 mm, Copper: 1.5 mm
150 Type	150 mm	20,000	Iron/Stainless Steel: 1.2 mm, Copper: 2.0 mm
200 Type	200 mm	40,000	Iron/Stainless Steel: 1.5 mm, Copper: 2.0 mm
250 Type	250 mm	65,000	Iron/Stainless Steel: 2.0 mm, Copper: 2.5 mm

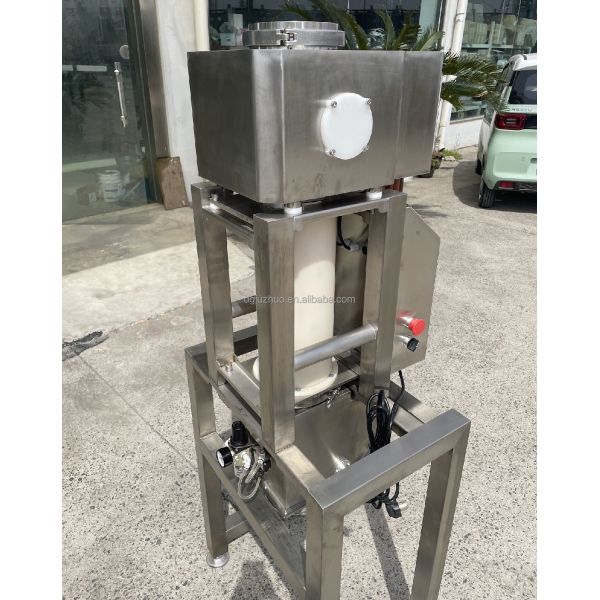

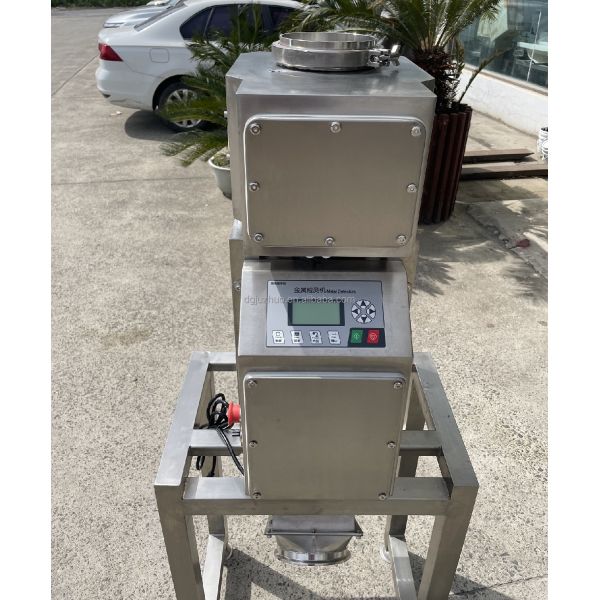

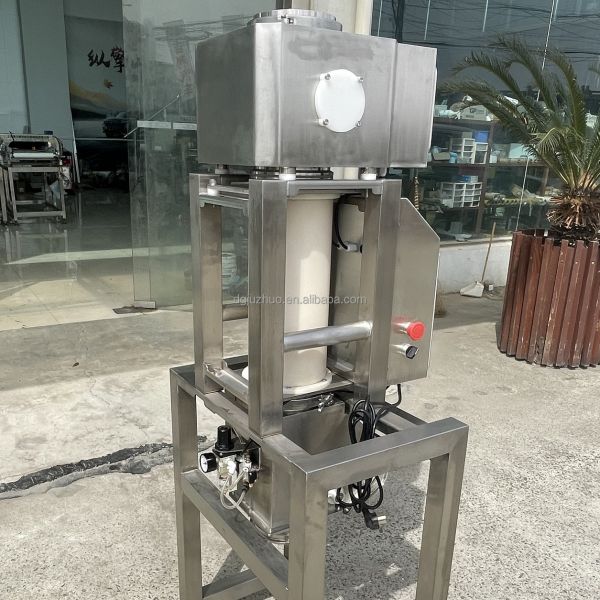

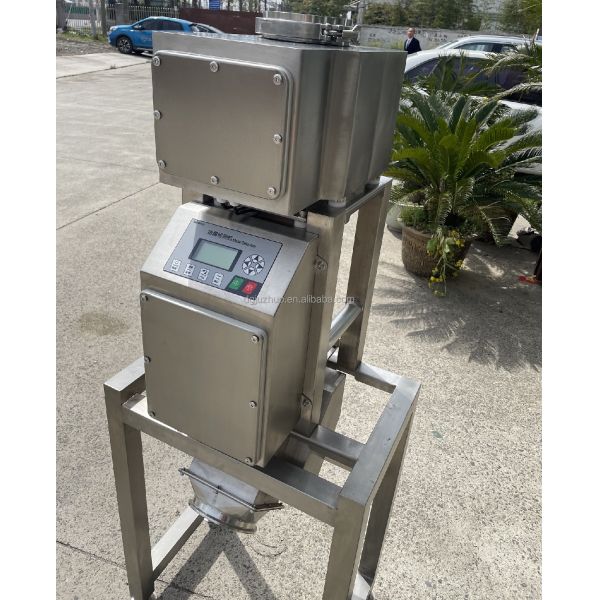

Product Images

High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
